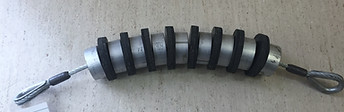

MANDREL

  • Primary use is to prove ducts are clear of debris and in original condition prior to wire/cable installation.

  • Can be used around tight bends due to rubber washer design with aluminum spacers between discs

  • Pulling eyelets at each end allows pulling in either direction.

  • Rubber discs do not damage inner walls of duct.

3" Mandrel
  • Recommended safe working load 1,300 lbs

  • Load tested to 2,600 lbs

  • Intended to be used in 3" diameter duct system

4" Mandrel
  • Recommended Safe working load 1,300 lbs

  • Load tested to 2,600 lbs

  • Intended to be used in 4" diameter duct system

5" Mandrel
  • Recommended Safe working load 1,300 lbs

  • Load tested to 2,600 lbs

  • Intended to be used in 5" diameter duct system

Get A Quote
Phone: 250-562-2831
Email: info@locate1.ca
2" Mandrel
  • Recommended safe working load 840 lbs

  • Load tested to 1,680 lbs

  • Intended to be used in 2" diameter duct system
